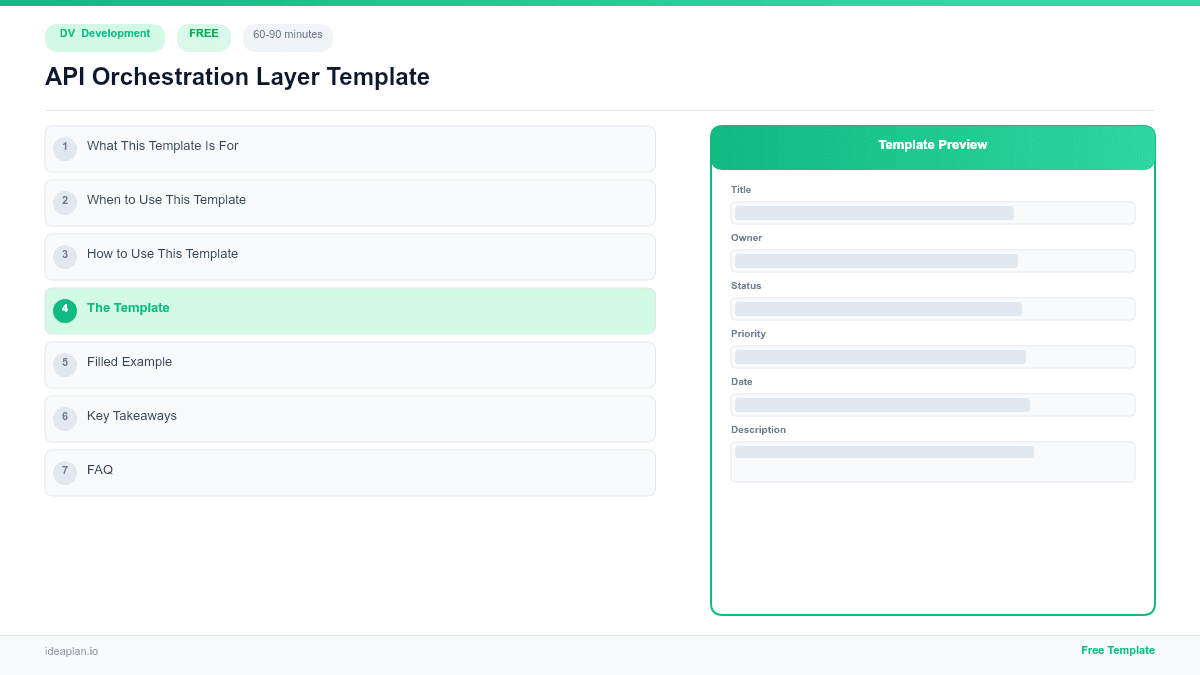

API Orchestration Layer Template

What This Template Is For

An API orchestration layer sits between your clients and your backend services. Instead of forcing a mobile app to make six separate API calls to render a single screen, an orchestration layer combines those calls into one request, handles partial failures gracefully, and returns a unified response. The pattern goes by several names: Backend for Frontend (BFF), API gateway, or API composition layer.

Without a clear specification, orchestration layers become dumping grounds for business logic that belongs elsewhere. Timeouts pile up, error handling is inconsistent, and nobody knows which downstream service is responsible for which field in the response.

This template documents the orchestration design: which endpoints exist, which services they call, how responses are assembled, and what happens when a downstream service fails. Use it when building a new BFF, refactoring a monolith API into composed microservice calls, or adding a new aggregate endpoint to an existing gateway. For broader context on managing technical architecture decisions, see the Technical PM Handbook. If your team is evaluating API management tools, the PM Tool Picker can help compare options.

How to Use This Template

1. List all client screens or workflows that require data from more than one backend service. These are your orchestration candidates.
2. For each candidate, map the downstream service calls: which services, which endpoints, which fields from each response.
3. Define the response contract. The orchestration layer should return a stable schema even when downstream services change their internal APIs.
4. Document error handling for each downstream call. Decide which failures are fatal (block the whole response) and which are degradable (return partial data).
5. Set timeout and retry policies per downstream call, not globally.
6. Review with engineering to validate assumptions about service latency and availability, then implement endpoint by endpoint.

The Template

Orchestration Layer Overview

Downstream Service Registry

Orchestrated Endpoints

Endpoint 1: [Name]

Call sequence.

Response schema.

{
  "user": { "id": "", "name": "", "email": "" },
  "preferences": { "theme": "", "notifications": true },
  "recommendations": []
}

Error Handling Strategy

Error response format.

{
  "error": {
    "code": "DOWNSTREAM_FAILURE",
    "message": "One or more services unavailable",
    "failedServices": ["service-b"],
    "partialData": true
  },
  "data": { }
}

Resilience Patterns

Circuit Breaker Configuration

Retry Policy

• ☐ Circuit breakers configured for each downstream service
• ☐ Retry policies defined per service (not global)
• ☐ Bulkhead isolation prevents one slow service from consuming all connection pool threads
• ☐ Fallback responses defined for non-critical services
• ☐ Health check endpoint exposes downstream service status

Rate Limiting

Caching Strategy

Monitoring and Observability

• ☐ Request duration tracked per orchestrated endpoint (P50, P95, P99)
• ☐ Downstream call duration tracked per service (separate from total)
• ☐ Error rate dashboards per downstream service
• ☐ Circuit breaker state changes trigger alerts
• ☐ Distributed tracing (trace ID propagated to all downstream calls)
• ☐ Log correlation: single request ID in gateway logs and all downstream logs

Filled Example: E-Commerce Checkout BFF

Orchestration Layer Overview

Downstream Services

Key Endpoint: POST /checkout/summary

Call sequence (total timeout: 2000ms).

Response (assembled).

{
  "cart": { "items": [], "itemCount": 3 },
  "pricing": { "subtotal": 14997, "currency": "USD" },
  "shipping": { "options": [], "estimated": true },
  "tax": { "amount": 1237, "rate": 0.0825 },
  "total": 16234,
  "availabilityConfirmed": true
}

If Shipping Service is unavailable, the response still returns with shipping: null and a partialData: true flag. The client displays "Shipping cost calculated at payment" instead of blocking the entire checkout summary.

Key Takeaways

• Define which downstream failures are fatal and which are degradable before writing any code
• Set per-service timeouts and retries rather than global defaults
• Keep business logic in downstream services, not in the orchestration layer
• Propagate trace IDs through all downstream calls for debugging
• Cache aggressively for read-heavy endpoints and invalidate via events
