What is a realistic timeline for reaching 70% automated test coverage?

For a team starting below 30%, expect 3-4 quarters of focused effort. The first quarter builds infrastructure (CI pipeline, testing framework, initial unit tests). The second quarter adds integration tests for critical paths. The third quarter expands coverage to edge cases and adds performance tests. Rushing this timeline usually produces brittle tests that the team abandons within months.

Should PMs care about testing strategy?

Yes. Testing directly affects the metrics PMs own. Slow releases mean delayed feature delivery. Production bugs mean user churn and support costs. Flaky deploys mean the team spends time firefighting instead of building. PMs do not need to write tests, but they need to advocate for the investment and protect the team's time during automation phases.

How do we handle testing for legacy code with no existing tests?

Do not try to backfill tests for the entire legacy codebase at once. Instead, adopt the "boy scout rule". Whenever the team modifies legacy code, add tests for the changed area. Over time, the most-modified (and therefore highest-risk) code accumulates coverage organically. The roadmap should reflect this incremental approach rather than a monolithic "test all legacy code" milestone.

What metrics prove the testing investment is paying off?

Track four DORA metrics: deployment frequency, lead time for changes, change failure rate, and [mean time to recovery](/metrics/mean-time-to-recovery-mttr). Improvements in these metrics are the business case for testing investment. If deployment frequency doubles and change failure rate drops by half, the testing roadmap is delivering value. Share these trends with stakeholders quarterly. ---

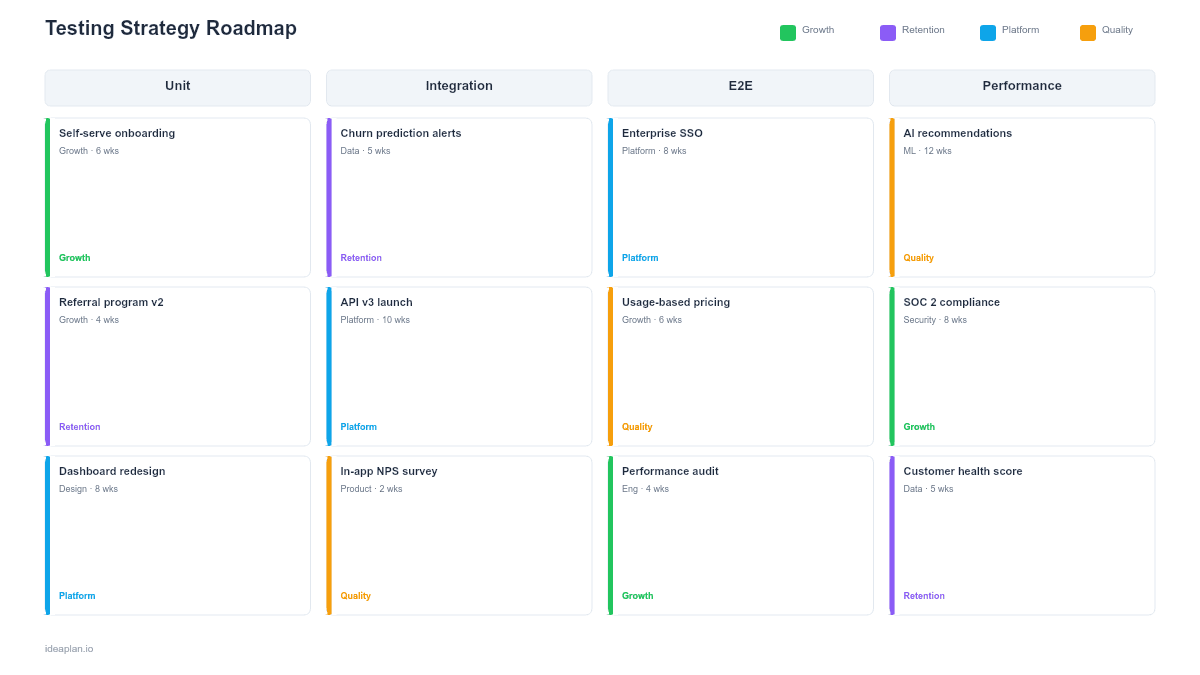

Testing Strategy Roadmap Template for PowerPoint

Quick Answer (TL;DR)

This free PowerPoint testing strategy roadmap template maps your team's evolution from manual QA to automated testing across four phases: foundation, automation, continuous testing, and quality culture. Each phase defines specific milestones for test coverage, tooling, and process changes. Download the .pptx, assess your current testing maturity, and present a clear plan for improving quality practices over 3-4 quarters.

What This Template Includes

Cover slide. Product name, current test coverage percentage, and testing maturity level.
Instructions slide. How to assess your current phase, set coverage targets, and define automation milestones. Remove before presenting.
Testing Maturity Assessment slide. Four-phase maturity model showing where your team sits today and what the next level looks like.
Test Pyramid slide. Visual breakdown of your current and target test distribution across unit, integration, and end-to-end tests.
Phased Roadmap slide. Four-phase timeline with specific milestones, tooling decisions, and coverage targets per phase.
Filled example slide. A working testing roadmap showing a team moving from 22% to 78% automated coverage over four quarters.

Why Your Testing Strategy Needs a Roadmap

Testing improvements happen gradually or not at all. Teams rarely go from zero automation to full CI/CD coverage in a single sprint. Without a phased plan, test automation becomes a side project that engineers work on "when they have time". Which means never.

A testing strategy roadmap solves three problems. First, it sets expectations with leadership. Moving from manual QA to automated testing requires investment: tooling, training, and slower initial velocity while the team builds infrastructure. A roadmap shows what each phase delivers and why the investment pays off through fewer regression bugs and faster release cycles.

Second, it prevents the common mistake of automating the wrong things first. Teams often start with end-to-end UI tests because they feel comprehensive. But E2E tests are slow, brittle, and expensive to maintain. The test pyramid exists for a reason: start with unit tests, add integration tests, and use E2E tests sparingly. The roadmap enforces this progression.

Third, it makes deployment frequency improvements concrete. Every phase of the testing roadmap enables faster, more confident releases. Phase 1 (foundation) catches obvious regressions. Phase 4 (quality culture) enables multiple deploys per day with automated quality gates.

Template Structure

Testing Maturity Assessment

The maturity model defines four phases:

Phase 1: Foundation. Manual testing with some unit tests. Coverage below 30%. QA is a bottleneck before releases. Mean time to recovery is measured in hours.
Phase 2: Automation. Automated unit and integration tests. Coverage at 40-60%. CI pipeline runs tests on every push. Manual QA focuses on exploratory testing instead of regression.
Phase 3: Continuous Testing. Tests run automatically on every commit. Coverage above 60%. Feature flags enable safe deploys. Automated performance and security testing added.
Phase 4: Quality Culture. Testing is part of development, not a separate step. Coverage above 75%. Change failure rate below 5%. Engineers write tests before code.

Test Pyramid Visualization

A pyramid diagram showing the target distribution:

Base (60-70%). Unit tests. Fast, isolated, cheap to write and maintain.
Middle (20-30%). Integration tests. Verify component interactions, API contracts, database queries.
Top (5-10%). End-to-end tests. Critical user flows only. Slow and expensive but verify real behavior.

The template shows both current state and target state side by side, so stakeholders can see the shift.

Phased Roadmap Timeline

Each phase includes:

Duration. Typically one quarter per phase, but adjustable.
Milestones. Specific deliverables (e.g., "CI pipeline running unit tests on every PR").
Tooling. Tools to adopt or evaluate in that phase.
Coverage Target. Measurable test coverage goal.
Process Changes. How the team's workflow changes (e.g., "PRs require passing tests before merge").

How to Use This Template

1. Assess your current maturity

Be honest about where your team is. If tests exist but nobody trusts them (flaky, outdated, slow), you are in Phase 1 regardless of nominal coverage. Check your lead time for changes and change failure rate. These metrics reveal testing maturity more reliably than coverage numbers alone.

2. Define your target state

Not every team needs Phase 4. If you release monthly and your product is not mission-critical, Phase 3 (continuous testing with 60%+ coverage) may be sufficient. Match your testing ambition to your deployment needs and the cost of defects in your domain.

3. Plan one phase at a time

Focus the roadmap on the immediate next phase with detail, and keep later phases as directional. Phase 2 should have specific milestones ("add integration tests for checkout API by end of March"). Phase 4 can stay aspirational ("engineer-driven quality culture with TDD adoption").

4. Budget for the productivity dip

Automation investment slows feature delivery in the short term. A team that currently ships 8 features per quarter might ship 6 during the automation phase while building test infrastructure. The roadmap should acknowledge this tradeoff explicitly. Faster and more reliable releases in subsequent quarters compensate for the initial slowdown.

5. Track leading indicators

Coverage percentage is a lagging indicator. Track leading indicators weekly: number of tests added per PR, CI pipeline pass rate, time from commit to deploy. These show whether the team is building testing habits, not just hitting coverage numbers through low-value tests.

When to Use This Template

A testing strategy roadmap PowerPoint template is the right choice when:

Release cycles are slowing down because manual QA takes longer as the product grows.
Production bugs are increasing despite having a QA team, signaling that manual testing cannot keep pace.
The team wants to adopt CI/CD but lacks the automated test coverage to deploy confidently.
Engineering leadership needs to justify investment in test infrastructure to non-technical stakeholders.
A platform migration or major refactor creates an opportunity to build testing right from the start.

If your focus is on the deployment pipeline rather than testing specifically, the DevOps Roadmap PowerPoint template covers the full CI/CD evolution. For addressing code-level quality issues, see the Technical Debt Roadmap PowerPoint template.

Featured in

This template is featured in Technical and Engineering Roadmap Templates, a curated collection of roadmap templates for this use case.

Key Takeaways

A phased approach (foundation, automation, continuous testing, quality culture) prevents teams from trying to automate everything at once.
The test pyramid ensures investment goes to fast, reliable tests first. Not brittle end-to-end scripts.
Budget for a short-term productivity dip during the automation phase; faster releases compensate within 1-2 quarters.
Track DORA metrics (deployment frequency, change failure rate) to prove the testing investment delivers business value.
PowerPoint format makes the testing strategy presentable to leadership who need to approve the engineering investment.
Compatible with Google Slides, Keynote, and LibreOffice Impress. Upload the .pptx to Google Drive to edit collaboratively in your browser.
